Vertical Jet 15HP Liquid-Cooled Air Conditioner 10-25m Throw Distance | GTFI

Model: AC07 ⭐ Energy Saving In Stock
1 Unit 1 Unit 15-25 Days 15-25 Days Shipping: FOB Shanghai / Shenzhen 12 Months 12 Months Spare Parts: Available

The GTFI Vertical Jet 15HP Liquid-Cooled Air Conditioner 10-25m Throw Distance is designed for factory workshops, warehouses, and production facilities requiring reliable, energy-efficient cooling. With 54 kW cooling capacity and a high-efficiency scroll compressor, this unit delivers consistent performance in demanding industrial environments. Energy savings up to 30% compared to traditional units.

Model: 15HP
Cooling Capacity: 54 kW
Rated Power: 14.6 kW
Refrigerant: R410B
Compressor Power: 11.25 kW
Throw Distance: 10-25m
30+ Countries Export OEM Capability Factory Tested 24/7 Support

Core Specifications

Key parameters at a glance — see if this unit fits your cooling needs.

Model15HP
Compressor Power11.25 kW
Cooling Capacity54 kW
Throw Distance10-25m
Fan Motor Power1×2 kW
Rated Power14.6 kW
Airflow8400 m³/h
Temp Range13-30°C
Cooling Area650-700㎡
RefrigerantR410B
Dimensions (L×W×H)64×131×212 cm
Weight365 kg
Outdoor Unit Size(22×74×107)×2
CertificationsCE, RoHS, ISO9001

Industrial Cooling Solution For Manufacturing Facilities

The GTFI Vertical Jet 15HP Liquid-Cooled Air Conditioner 10-25m Throw Distance is engineered to meet the rigorous demands of factory workshops, warehouses, and production lines. Unlike traditional air-cooled systems, this unit uses a liquid-cooled condenser that achieves up to 30% higher energy efficiency, significantly reducing operational costs in large industrial spaces.

Designed for 24/7 continuous operation, this industrial air conditioner features a high-efficiency scroll compressor, durable copper coil heat exchangers, and a robust steel casing that withstands harsh environments. With a cooling capacity of 25kW, it effectively covers areas from 200 to 300 square meters, making it ideal for automotive factories, electronic workshops, food processing plants, and data centers.

Key Technical Features

  • High-Efficiency Scroll Compressor — provides reliable cooling with minimal vibration and noise.
  • Liquid-Cooled Condenser — achieves up to 30% energy savings compared to air-cooled systems.
  • Large-Area Coverage — effectively cools 200-300㎡ industrial spaces.
  • Eco-Friendly Refrigerant — uses R410A for optimal performance and environmental compliance.
  • Smart Control System — digital temperature display with remote monitoring capability.
  • Durable Construction — heavy-duty steel casing with anti-corrosion coating for long service life.

Technical Advantages

Four reasons to choose the GTFI liquid cooling industrial AC.

Ultra-Long Throw Distance

10-25m throw distance for large poorly sealed spaces.

High Cooling Capacity

54kW cooling capacity covers up to 700㎡.

Energy Efficient

Liquid-cooled design saves 30-40% electricity compared to traditional air-cooled systems.

Dual Outdoor Units

Two outdoor units provide better heat dissipation for large spaces.

Where This Unit Works Best

Six common use cases for the 10HP liquid cooling industrial AC.

Extra-large poorly sealed...

Industrial facilities wit...

Warehouses

Manufacturing plants

Steel mills

Foundries

Working Principle

Simple, efficient, and reliable three-step cooling process.

1

Air Intake & Filtration

Warm air is drawn through the return air inlet and filtered to remove dust and particles.

2

Liquid Cooling Process

The refrigerant absorbs heat from the air via the evaporator while the liquid-cooled condenser dissipates heat through w...

3

Long-Throw Air Distribution

Chilled air is projected up to 25 meters through the high-power jet outlet for effective spot cooling.

Installation Cases

See how our units are installed in real industrial settings.

Portable AC 3HP Louver

Portable AC 3HP Louver

Portable plug-and-play louver type air conditioner for tempo...

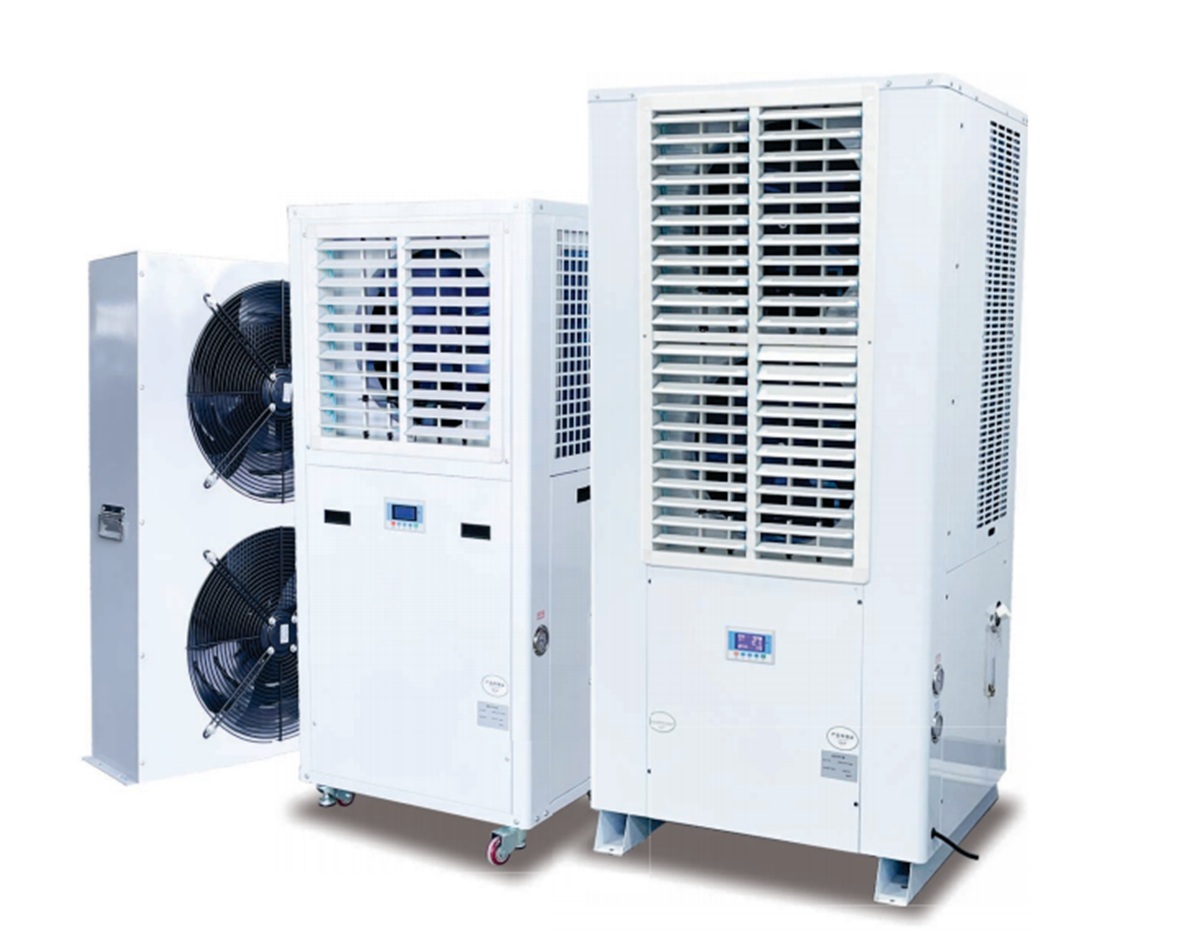

12HP-D Double Louver

12HP-D Double Louver

High-capacity liquid-cooled energy-saving air conditioner fo...

Portable AC 2HP Duct

Portable AC 2HP Duct

Portable plug-and-play duct type air conditioner for tempora...

Technical Documents & Quality Assurance

Download technical specs, view certifications, and see our delivery process.

Product Datasheet

Complete technical specifications, performance curves, and dimensional drawings in PDF format.

View Datasheet Page

Installation Manual

Step-by-step installation guide, safety precautions, and maintenance schedule for long-term reliability.

View Manual Page

Quality Assurance & Certifications

CE Available

ISO9001

Factory Tested

Delivery Process

1

Inquiry

2

Technical Confirmation

3

Production

4

Inspection

5

Shipment

6

After-sales Support

Frequently Asked Questions

Quick answers to the most common questions about our industrial AC.

What is the throw distance of vertical jet 15HP?
10-25 meters.
What is the cooling capacity?
54kW cooling capacity, covering 650-700㎡.
Is it suitable for poorly sealed workshops?
Yes, the ultra-long throw distance makes it ideal for poorly sealed spaces.
How much energy can I save?
Up to 30-40% energy savings compared to traditional air-cooled systems.
What refrigerant does it use?
R410B eco-friendly refrigerant.
