Industrial Air Conditioner · Duct Type 5HP Liquid-Cooled Air Conditioner for Lim…

Click to zoom

Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops

Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops - View 2

Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops - View 3

Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops - View 4

Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops | GTFI

Name: Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops
Brand: GTFI
SKU: 5HP

Model: AC09 ⭐ Energy Saving In Stock

1 Unit 1 Unit 15-25 Days 15-25 Days Shipping: FOB Shanghai / Shenzhen 12 Months 12 Months Spare Parts: Available

The GTFI Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops is designed for factory workshops, warehouses, and production facilities requiring reliable, energy-efficient cooling. With 18 kW cooling capacity and a high-efficiency scroll compressor, this unit delivers consistent performance in demanding industrial environments. Energy savings up to 30% compared to traditional units.

Model: 5HP

Cooling Capacity: 18 kW

Rated Power: 5.1 kW

Refrigerant: R410A

Compressor Power: 3.75 kW

Air Outlet Size: 310×210 mm

Get Latest Price Download Datasheet Back

30+ Countries Export OEM Capability Factory Tested 24/7 Support

Technical Data

Core Specifications

Key parameters at a glance — see if this unit fits your cooling needs.

Model5HP

Compressor Power3.75 kW

Cooling Capacity18 kW

Air Outlet Size310×210 mm

Fan Motor Power0.52 kW

Rated Power5.1 kW

Airflow3350 m³/h

Temp Range13-30°C

Cooling Area150-200㎡

RefrigerantR410A

Dimensions (L×W×H)60×80×136 cm

Weight166 kg

Outdoor Unit Size22×74×107 cm

CertificationsCE, RoHS, ISO9001

Overview

Industrial Cooling Solution For Manufacturing Facilities

The GTFI Duct Type 5HP Liquid-Cooled Air Conditioner for Limited Space Workshops is engineered to meet the rigorous demands of factory workshops, warehouses, and production lines. Unlike traditional air-cooled systems, this unit uses a liquid-cooled condenser that achieves up to 30% higher energy efficiency, significantly reducing operational costs in large industrial spaces.

Designed for 24/7 continuous operation, this industrial air conditioner features a high-efficiency scroll compressor, durable copper coil heat exchangers, and a robust steel casing that withstands harsh environments. With a cooling capacity of 25kW, it effectively covers areas from 200 to 300 square meters, making it ideal for automotive factories, electronic workshops, food processing plants, and data centers.

Key Technical Features

High-Efficiency Scroll Compressor — provides reliable cooling with minimal vibration and noise.
Liquid-Cooled Condenser — achieves up to 30% energy savings compared to air-cooled systems.
Large-Area Coverage — effectively cools 200-300㎡ industrial spaces.
Eco-Friendly Refrigerant — uses R410A for optimal performance and environmental compliance.
Smart Control System — digital temperature display with remote monitoring capability.
Durable Construction — heavy-duty steel casing with anti-corrosion coating for long service life.

Why Choose GTFI

Technical Advantages

Four reasons to choose the GTFI liquid cooling industrial AC.

Compact Design

Duct type design saves space in limited workshops.

Energy Efficient

Liquid-cooled design saves 30-40% electricity compared to traditional air-cooled systems.

Flexible Air Distribution

Duct outlets allow flexible cooling delivery to specific areas.

Easy Installation

PVC water pipe connection eliminates the need for copper pipes.

Applications

Where This Unit Works Best

Six common use cases for the 10HP liquid cooling industrial AC.

Limited space workshops

Poorly sealed workshops

Spot cooling

Industrial facilities

Warehouses

Commercial spaces

How It Works

Working Principle

Simple, efficient, and reliable three-step cooling process.

Air Intake & Filtration

Warm air is drawn through the return air inlet and filtered to remove dust and particles.

Liquid Cooling Process

The refrigerant absorbs heat from the air via the evaporator while the liquid-cooled condenser dissipates heat through w...

Ducted Air Distribution

Chilled air is distributed through duct outlets for flexible cooling delivery.

Real Installations

Installation Cases

See how our units are installed in real industrial settings.

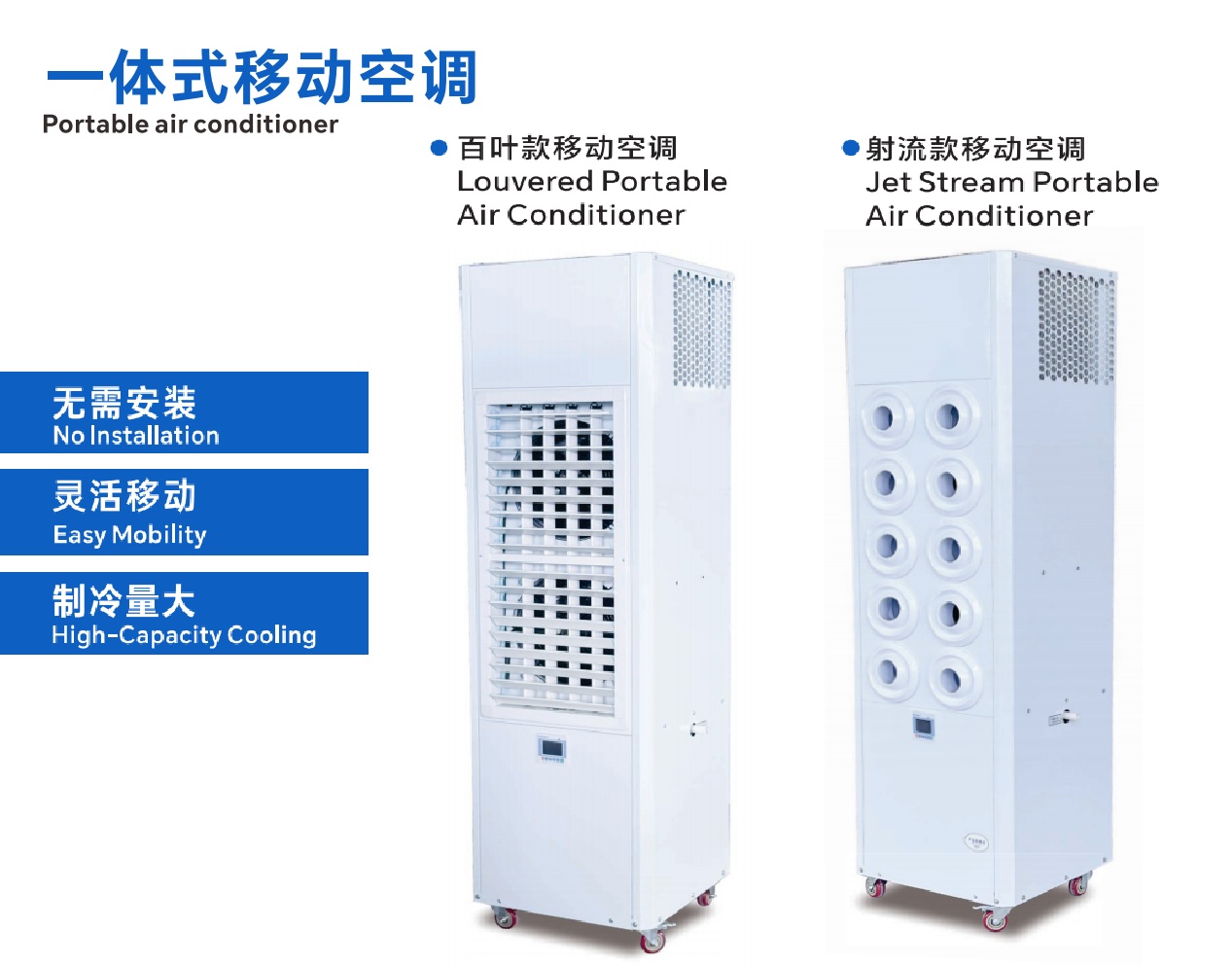

Portable AC 5HP Jet

High-capacity portable plug-and-play jet type air conditione...

Portable AC 2HP Duct

Portable plug-and-play duct type air conditioner for tempora...

Water-Cooled 5HP Duct Type

Water-cooled duct type chiller for spot cooling applications...

Resources

Technical Documents & Quality Assurance

Download technical specs, view certifications, and see our delivery process.

Product Datasheet

Complete technical specifications, performance curves, and dimensional drawings in PDF format.

View Datasheet Page

Installation Manual

Step-by-step installation guide, safety precautions, and maintenance schedule for long-term reliability.

View Manual Page

Quality Assurance & Certifications

CE Available

ISO9001

Factory Tested

Delivery Process

Inquiry

Technical Confirmation

Production

Inspection

Shipment

After-sales Support

FAQ

Frequently Asked Questions

Quick answers to the most common questions about our industrial AC.

What is the advantage of duct type design?

It saves space and allows flexible air distribution.

What is the cooling capacity?

18kW cooling capacity, covering 150-200㎡.

How much energy can I save?

Up to 30-40% energy savings compared to traditional air-cooled systems.

What type of installation is required?

PVC water pipe connection – no copper pipes needed.

What is the warranty period?

1 year for the unit, 3 years for the compressor.
