3WYF-120 Remote-Controlled Tracked Sprayer 120L Tank Fan-Assisted Spraying | GTFI

Model: SP03 ⭐ Industrial Grade In Stock

Heavy-duty industrial construction
Reliable performance for demanding environments
OEM customization available
Factory direct supply with global shipping

1 Unit 1 Unit 15-25 Days 15-25 Days Shipping: FOB Shanghai / Shenzhen 12 Months 12 Months Spare Parts: Available

GTFI 3WYF-120 remote-controlled tracked sprayer, 120L tank, 6HP gasoline engine, 12m spray width, fan-assisted spraying. Ideal for vineyards, fruit trees, and row crops. CE certified.

Model: 3WYF-120

Dimensions (L×W×H): 1500×620×850 mm

Spray Width: 12 m

Spray Height: 5.5 m

Tank Capacity: 120 L

Pump: Triplex plunger 26 type

30+ Countries Export OEM Capability Factory Tested 24/7 Support

Technical Data

Core Specifications

Key parameters at a glance — see if this unit fits your needs.

Model3WYF-120

Dimensions (L×W×H)1500×620×850 mm

Spray Width12 m

Spray Height5.5 m

Tank Capacity120 L

PumpTriplex plunger 26 type

Machine Weight190 kg

Track Width10 cm

Remote Distance>100 m

Chassis Width52 cm

Gasoline EngineLonxin 170, 4.4 kW (6 HP)

Diesel EngineChangfa 173, 4.0 kW (5.5 HP)

Nozzle Count8 (customizable)

Fan Duct Diameter45 cm

Discharge Rate7.5 L/min

Tank Duration16 min per tank

Emission StandardEuro 5

CertificationsCE

Overview

Agricultural Sprayer · 3WYF-120 Remote-Controlled Tracked Sprayer 120L Tank Fan-… — Professional Industrial Solution

GTFI 3WYF-120 remote-controlled tracked sprayer, 120L tank, 6HP gasoline engine, 12m spray width, fan-assisted spraying. Ideal for vineyards, fruit trees, and row crops. CE certified.

Key Technical Features

Heavy-duty construction — built for continuous operation in demanding industrial environments.
High performance — delivers reliable output with consistent quality.
Durable components — engineered with premium materials for long service life.
Easy maintenance — modular design simplifies inspection and parts replacement.
Global compliance — CE, RoHS, and ISO9001 certified for international markets.
Custom OEM support — full customization including voltage, color, branding, and special features.

#Industrial Equipment #Agricultural Sprayer #OEM Manufacturer #China Supplier #Global Shipping

Why Choose GTFI

Technical Advantages

Four reasons to choose GTFI industrial equipment.

Fan-Assisted Coverage

45cm fan duct improves spray coverage and penetration.

Compact & Agile

52cm chassis fits narrow vineyard rows.

Flexible Power

Gasoline or diesel engine options available.

Remote Safety

Operate from >100m distance.

Applications

Where This Product Works Best

Six common use cases for this industrial equipment.

Vineyards

Fruit trees

Row crops

Orchards

Agricultural spraying

Pesticide and fertilizer ...

How It Works

Working Principle

Simple, efficient, and reliable three-step process.

Remote Start & Drive

Use the remote control to start the engine and drive the sprayer to the target area.

Fan-Assisted Spraying

The fan disperses spray droplets for better coverage and penetration.

Tank Refill & Continue

Refill the 120L tank and continue spraying for extended coverage.

Real Installations

Installation Cases

See how our products are installed in real industrial settings.

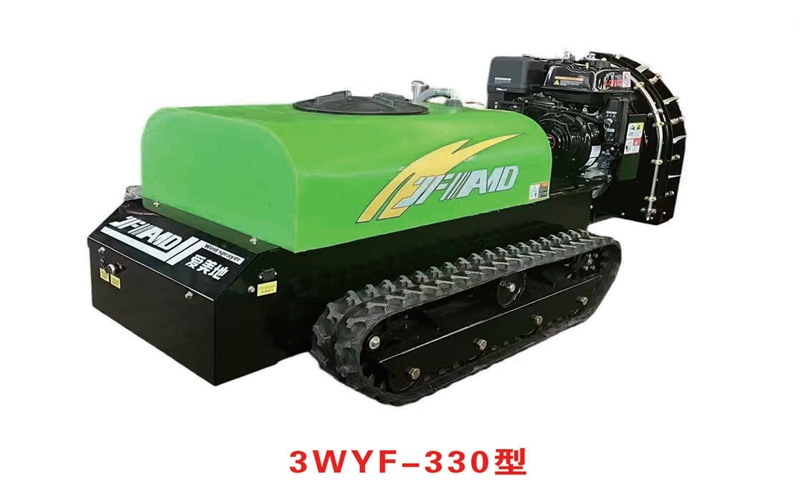

3WYF-330

High-clearance remote-controlled tracked sprayer for orchard...

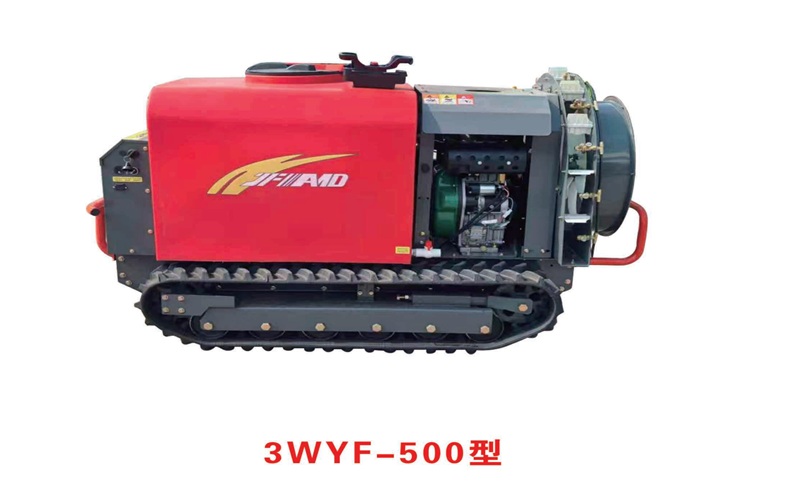

3WYF-500

Long-range diesel-powered remote-controlled tracked sprayer ...

3WZF-1000

Driver-type tracked sprayer for large plantations and paddy ...

FAQ

Frequently Asked Questions

Quick answers to the most common questions.

What is the tank capacity?

120L.

What is the spray width?

12 meters.

What is the fan duct diameter?

45cm.

What engine options are available?

Gasoline (Lonxin 170 6HP) or diesel (Changfa 173 5.5HP).

What is the spray height?

Up to 5.5 meters.
